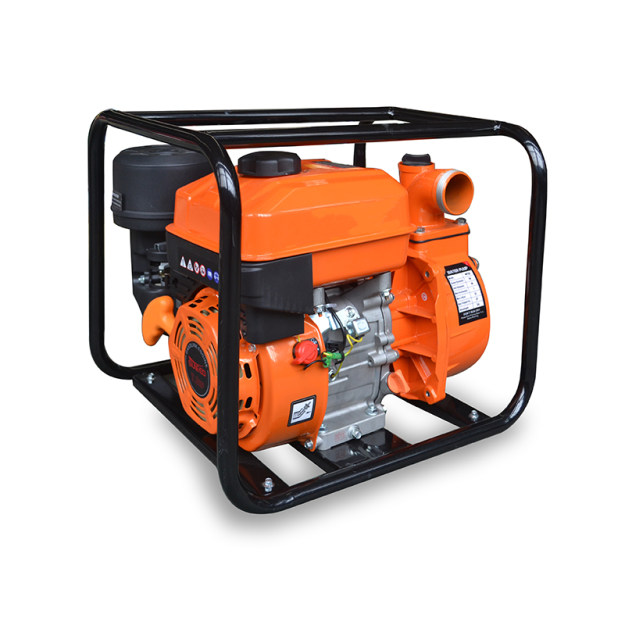

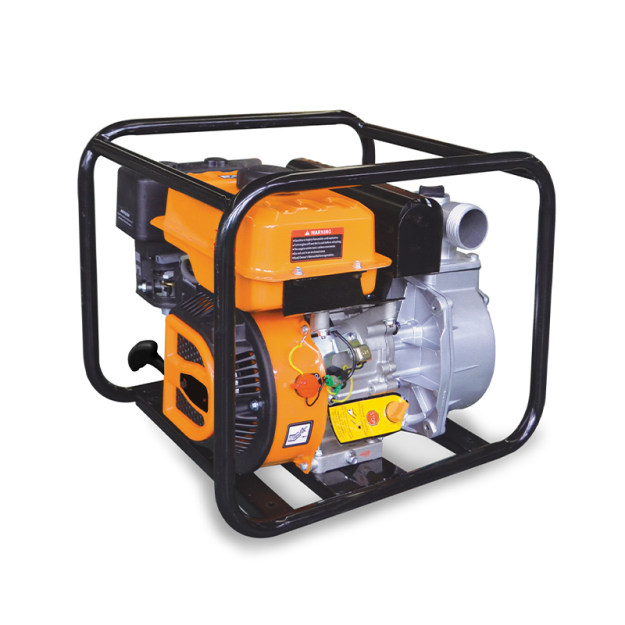

Clean Water Pump
Water Pump EngineKT168F (GX160)KT170F(GX220)KT177FKT188F(GX390)KT192F(GX420)ENGINE TYPE SINGLE CYLINDER AIR-COOLED 4-STROKE (OHV)BORE X STROKE68*5470*5577*5888*6490*66Displacement(cc)196212270389420Co
Water Pump Engine | KT168F (GX160) | KT170F (GX220) | KT177F | KT188F (GX390) | KT192F (GX420) |
ENGINE TYPE | SINGLE CYLINDER AIR-COOLED 4-STROKE (OHV) | ||||
BORE X STROKE | 68*54 | 70*55 | 77*58 | 88*64 | 90*66 |
Displacement(cc) | 196 | 212 | 270 | 389 | 420 |
Compression Ratio | 8.5:1 | 8.5:1 | 8.2:1 | 8:1 | 8:1 |
Max Power(Hp/(r/RPM) | 6.5hp/3600 | 7.0hp/3600 | 9.0hp/3600 | 13.0hp/3600 | 16hp/3600 |
Max.Torque(N.m/(RPM) | 12.5/2500 | 13.5/2500 | 17.5/2500 | 24.5/2500 | 26/2500 |
Ignition system | CTI | ||||
Starting system | Recoil/electric | ||||
Fuel tank capacity | 3.6L | 3.6L | 6.0L | 6.0L | 6.0L |
Engine oil system capacity | 0.6L | 0.6LL | 1.1L | 1.1L | 1.1L |
Min. Fuel Consumption | 395g/kw/h | 395g/kw/h | 375g/kw/h | 370g/kw/h | 370g/kw/h |
Dimensions (mm) | 400*345*380 | 405*365*380 | 480*435*505 | 480*435*515 | 480*435*515 |
G.W /N.W (Kg) | 16/15 | 16.5/15 | 28/26 | 32/31 | 32/31 |
Clean Water Pump | KTWP20 | KTWP30 | KTWP40 | KTWP60 | |
Working Time （Hr） | 2.5 | 2.5 | 2.3 | 2.3 | |
Type of Pump | Self-priming, Centrifugal pump. | ||||
Material of Pump body, impeller | Aluminum / Casting Iron | ||||
Max. Flow ( CM3 ) | 30 | 50 | 96 | 168 | |
Max.Lift Head ( M ) | 32 | 30 | 35 | 27 | |
Suction( M ) | 6 | 7 | 5 | 5 | |
Inlet/outlet Diameter(mm) | 50/50 | 80/80 | 100/100 | 150/150 | |
Diameter of Frame (mm) | 22 | 25 | 25 | 25 | |
Packing Size | 500*430*430 | 545*430*430 | 630*475*530 | 760*535*670 | |
Gross/Net Weight(kgs.) | 24/22 | 26/24 | 41/38 | 86/74 | |
LoadingQty.(20GP/40HQ) | 350/850 | 315/760 | 200/490 | 115/275 | |
