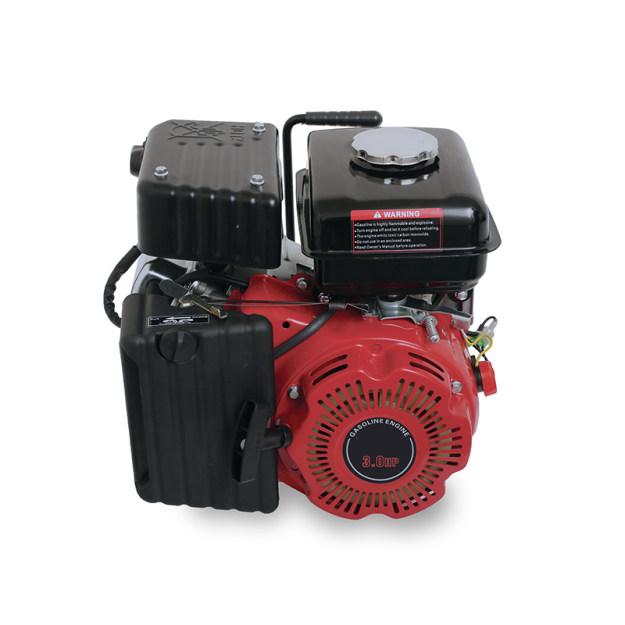

KT152F KT154F KT156F Petrol Engine
MODELKT152FKT154FKT156FENGINE TYPE AIR-COOLED ,4 STROKE BORE X STROKE52*4654*4656*40Displacement(cc)98105100Compression Ratio6.8:16.8:18.8:1Max Power(HP/(r/RPM)2.5hp/36003.0hp/36003.5hp/3600Rated Powe
MODEL | KT152F | KT154F | KT156F | |
ENGINE TYPE | AIR-COOLED ,4 STROKE | |||
BORE X STROKE | 52*46 | 54*46 | 56*40 | |
Displacement(cc) | 98 | 105 | 100 | |
Compression Ratio | 6.8:1 | 6.8:1 | 8.8:1 | |
Max Power(HP/(r/RPM) | 2.5hp/3600 | 3.0hp/3600 | 3.5hp/3600 | |
Rated Power Output | 1.86kw | 2.23kw | 2.61kw | |
Max. Torque(N.m(RPM) | 3.0/2500 | 3.2/2500 | 4.3/2500 | |
Ignition system | CTI | |||
Starting system | Recoil/electric | |||
Fuel tank capacity | 1.4L | 1.4L | 6.5L | |
Engine oil system capacity | 0.45L | 0.45L | 0.4L | |
Min. Fuel Consumption | 450g/kw/h | 450g/kw/h | 420g/kw/h | |
Dimensions (mm) | 295*290*365 | 295*290*365 | 310*335*315 | |
G.W /N.W (Kg) | 10/9.5 | 10/9.5 | 12/11 | |
