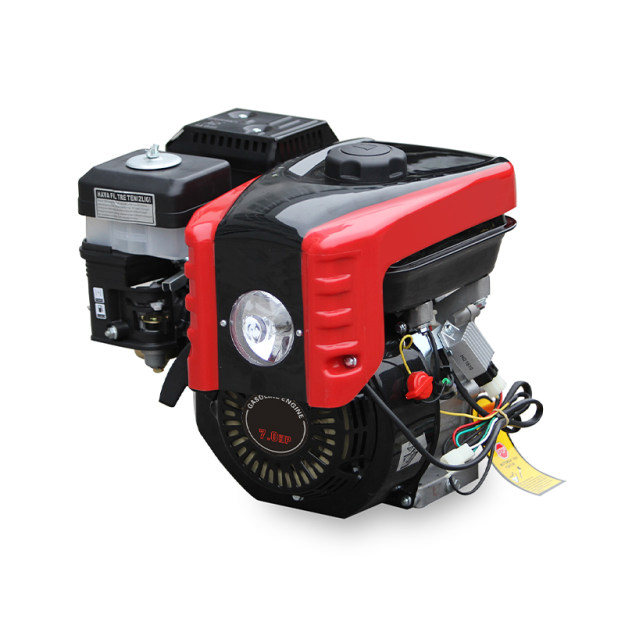

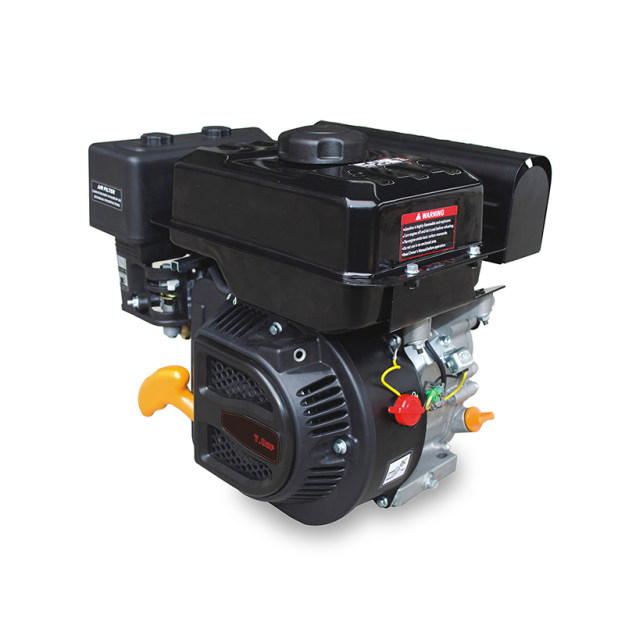

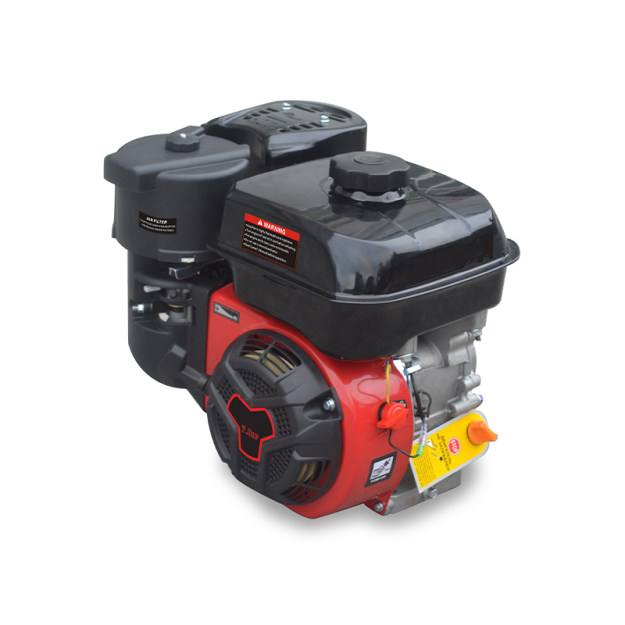

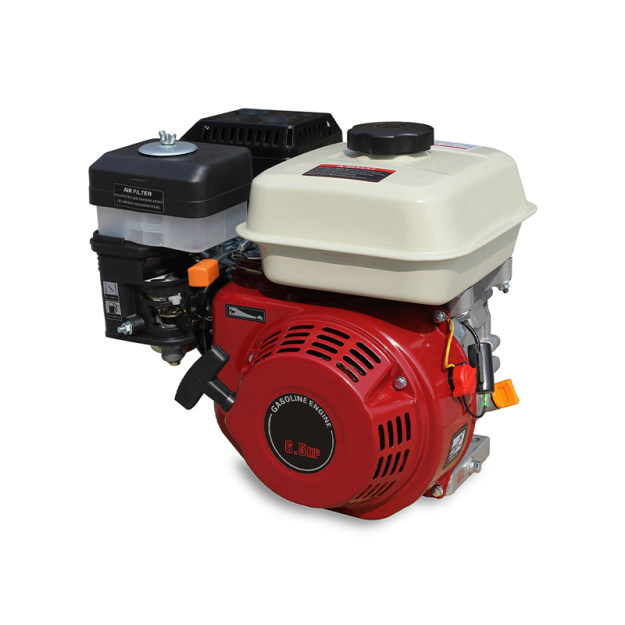

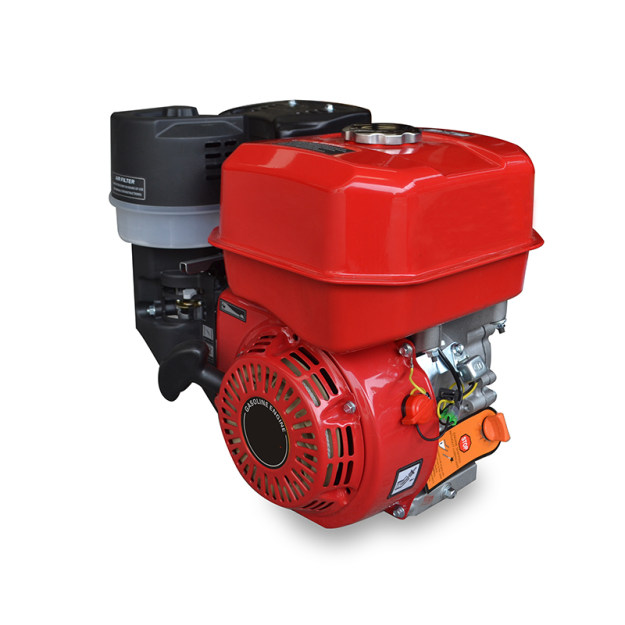

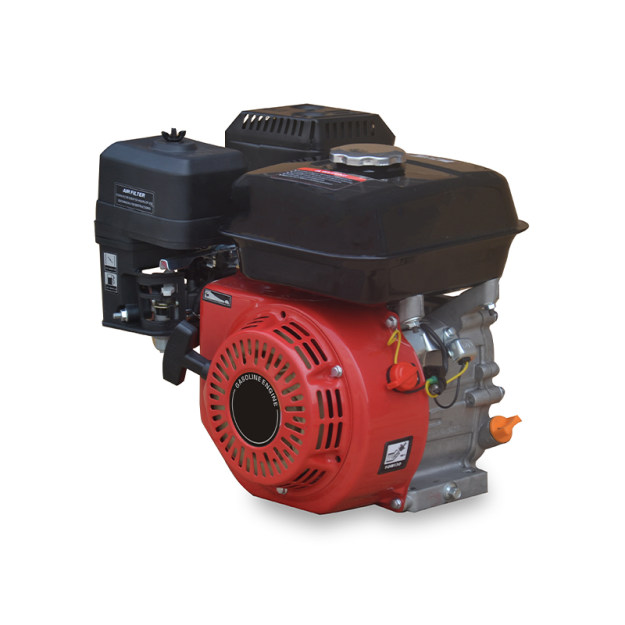

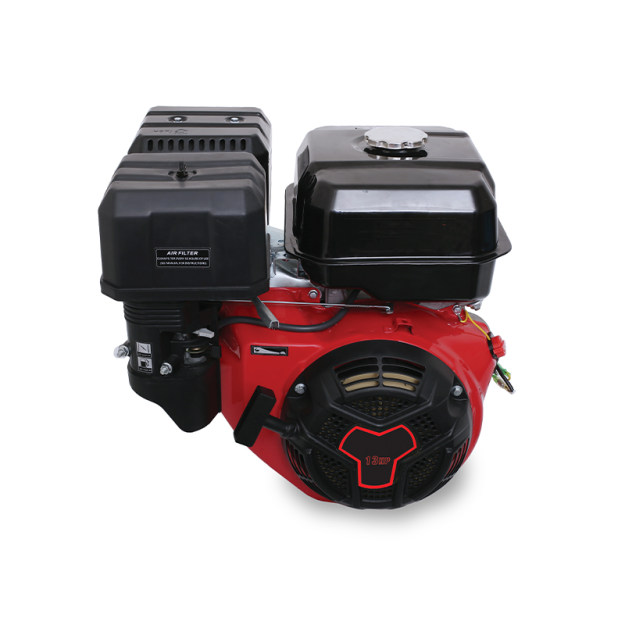

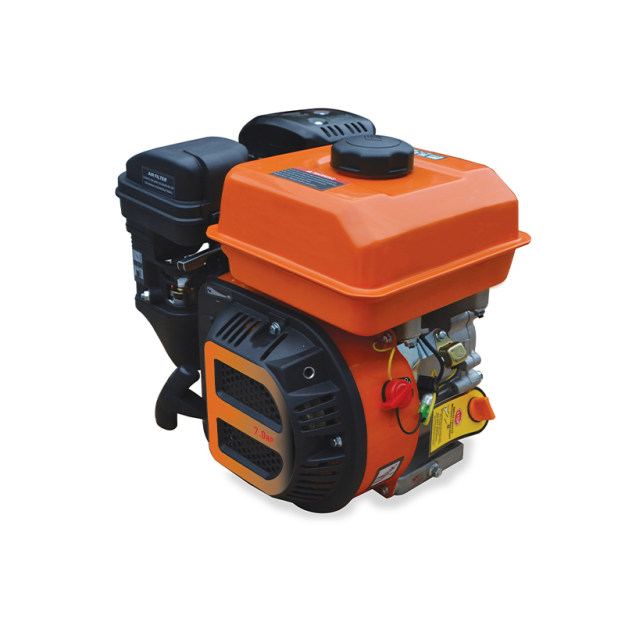

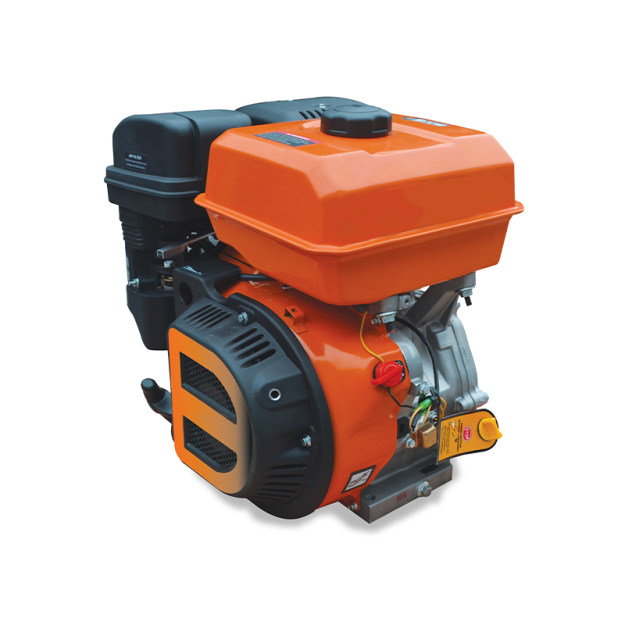

KT168F KT192F Petrol Engine
MODELKT168F (GX160)KT170F(GX200)KT177FKT188F(GX390)KT192F(GX420)ENGINE TYPE SINGLE CYLINDER AIR-COOLED 4-STROKE (OHV)BORE X STROKE68*5470*5577*5888*6490*66Displacement(cc)196212270389420Compression Ra
MODEL | KT168F (GX160) | KT170F (GX200) | KT177F | KT188F (GX390) | KT192F (GX420) |
ENGINE TYPE | SINGLE CYLINDER AIR-COOLED 4-STROKE (OHV) | ||||
BORE X STROKE | 68*54 | 70*55 | 77*58 | 88*64 | 90*66 |
Displacement(cc) | 196 | 212 | 270 | 389 | 420 |
Compression Ratio | 8.5:1 | 8.5:1 | 8.2:1 | 8:1 | 8:1 |
Max Power(Hp/(r/RPM) | 6.5hp/3600 | 7.0hp/3600 | 9.0hp/3600 | 13.0hp/3600 | 16hp/3600 |
Max.Torque(N.m/(RPM) | 12.5/2500 | 13.5/2500 | 17.5/2500 | 24.5/2500 | 26/2500 |
Ignition system | CTI | ||||
Starting system | Recoil/electric | ||||
Fuel tank capacity | 3.6L | 3.6L | 6.0L | 6.0L | 6.0L |
Engine oil system capacity | 0.6L | 0.6LL | 1.1L | 1.1L | 1.1L |
Min. Fuel Consumption | 395g/kw/h | 395g/kw/h | 375g/kw/h | 370g/kw/h | 370g/kw/h |
Dimensions (mm) | 400*345*380 | 405*365*380 | 480*435*505 | 480*435*515 | 480*435*515 |
G.W /N.W (Kg) | 16/15 | 16.5/15 | 28/26 | 32/31 | 32/31 |
