Engineering Diesel Engine Welding Plant Generator KTDS800A

Performance characteristics

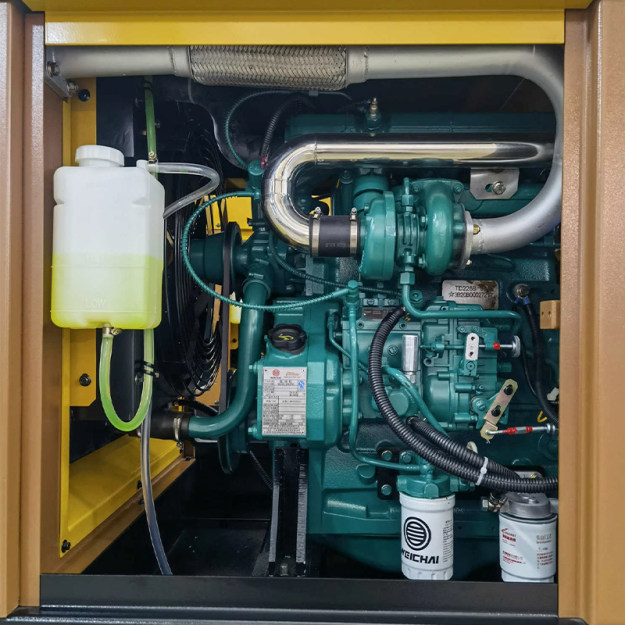

1. Using Dowitz TD226B-3D four-stroke three-cylinder engine, the power is surging.

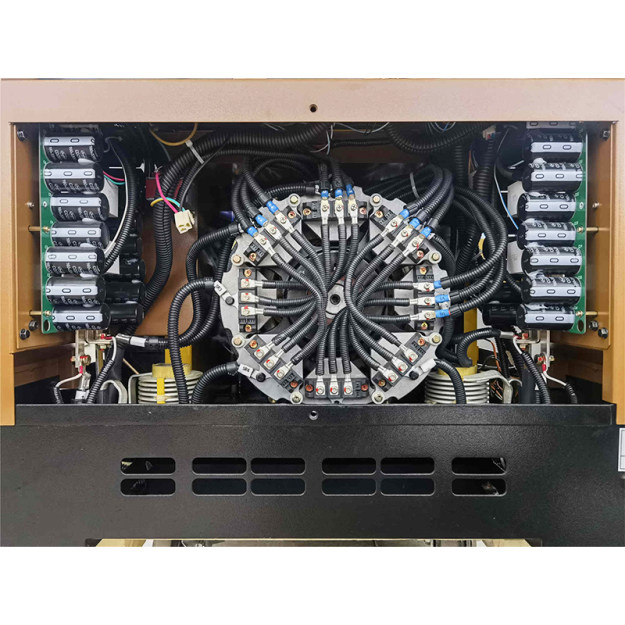

2. Brushless, inductor power generation technology, high power generation efficiency, provide better welding power source.
3. Adopting high and low current selector switch does not need the tedious process of shutdown and plugging and pulling out fast plugs.
4. Equipped with oil alarm, water temperature alarm, battery alarm, oil alarm function.
5. Instruments are complete and equipped with sensor oil meter, digital ammeter, voltmeter, timer and electricity.
Flow adjusting knob, arc blowing adjusting knob, etc.
6. It can realize double-handed manual + double-handed semi-automatic output on the same machine, in the true sense of engine welding machine ranks.
To achieve the same machine output, manual welding and semi-automatic welding output effect at the same time to achieve a perfect realization, fully satisfied
Lincoln LN-23P and Bear Valley wire feeders can be optionally selected according to the requirements of professional construction units of long distance pipelines.
Flat characteristic welding output is carried out.
7. Suitable for many kinds of electrodes. Excellent application of cellulose electrodes, low hydrogen electrodes and all-position argon arc welding can be achieved.
Answer.
8. Excellent arc effect, stable arc, small splash, delicate and smooth feel.
9,2*3KW 220V+30KW three-phase auxiliary power supply can provide on-site power supply for various equipment and tools.
The fuel consumption of 10 and 400 A is only 4.96L/h. 79L tank can run continuously for more than 15 hours.
Oil tank cover is anti-theft type, which avoids frequent oil loss in construction site.
11. There are four anti-theft checking doors on the left and right sides of the whole machine, so that the maintenance and maintenance of the whole machine can not be separated from space and land.
Limitation of points; Hanging rings in the middle for easy lifting during transportation; Trailer installation reserved at the bottom
Hole. There are outlets of exhaust oil, drainage and fuel oil under the bottom side.
12. The whole machine adopts mute technology. The 3M noise is only 75dB, which greatly improves the construction of noise on site.
